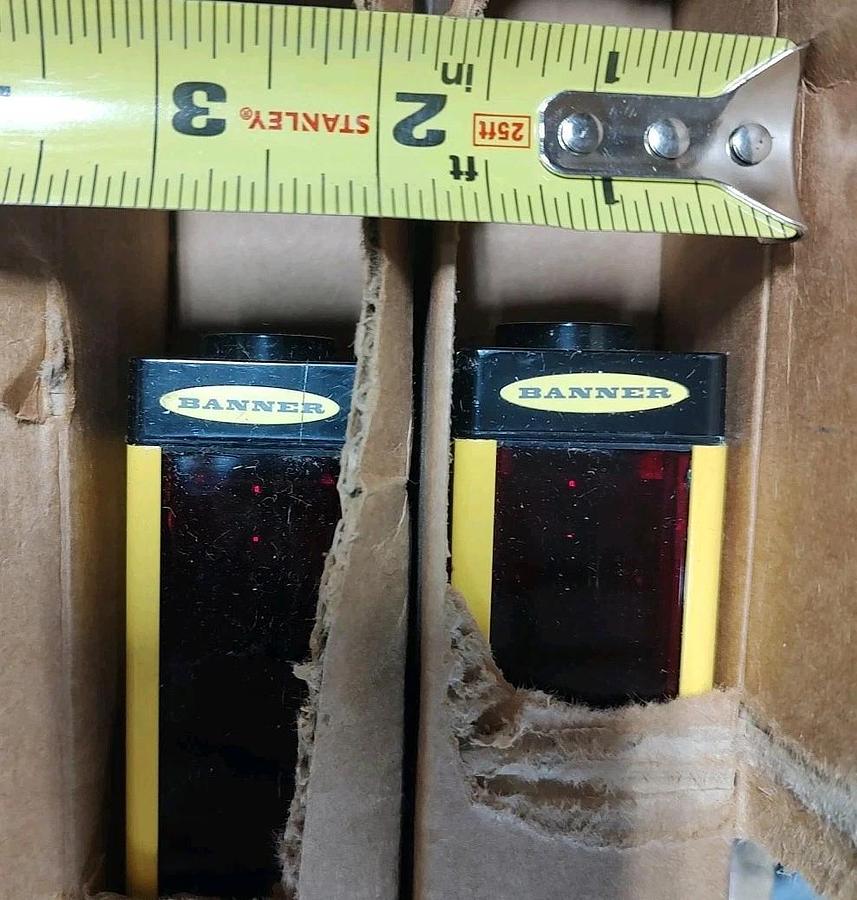

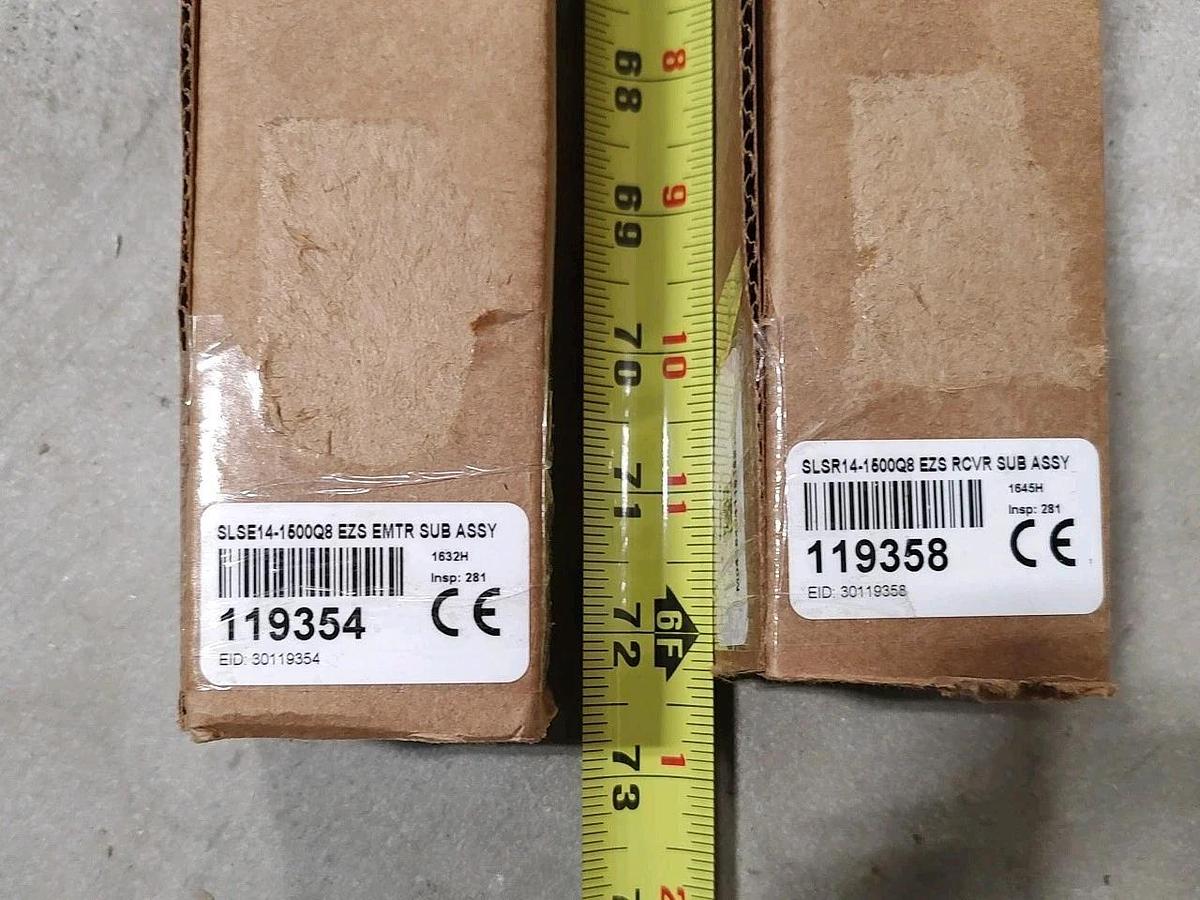

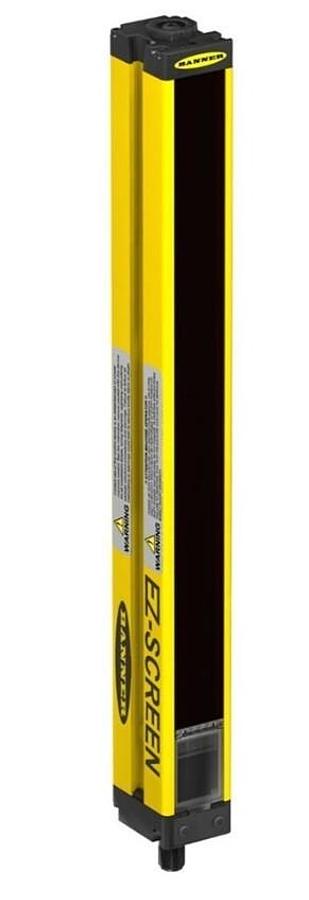

NEW & UNUSED BANNER SLSE14-1500Q8 EZ Screen Safety Light Curtain EMTR & RCVR

NEW & UNUSED BANNER SLSE14-1500Q8 EZ Screen Safety Light Curtain EMTR & RCVR · If you need help determining if this is the right part for your application, please ask! · Free economy shipping! · Thank you! DOES NOT INCLUDE THE CORDSETS!!! SPECIFICATIONS: IP Rating IP65 Low Profile No Max Operating Range (m) >4 - <=8 Defined Area Height Range (mm) >1300 Primary Housing Material Aluminum Safety Level Type 4 Effective Aperture Angle Type 4 Per IEC 61496-2 Connector Type M12 Defined Area Height (mm) 1500 Dimensions WxD (mm) 36 x 45.2 Overall Length (mm) 1569 External Monitoring Device No Housing Finish Black Polyester Number of Pins (Receiver/Emitter) 8 Operating Distance (m) 0.1 - 6 Operating Voltage 24 V dc +/- 15% Operating Temperature 0 to +55 deg. C; RH 95% PL Rating Ple Recovery Time 33-220 / 109-800 Resolution (mm) 14 Reduced Resolution No Response Time 48 SIL Rating SIL3; CL3 Electrical Safety Class III Scan Code Selectable Shock 10g at 16ms (6000 cycles) Short Protection Yes System Type Emitter Vibration 10-55 Hz at 0.35 mm Auxiliary Output No Fault Output No Housing Material Aluminum; Zinc; Acrylic OSSD Rating N/A Supply Current 100 mA max. Trip/Latch Output N/A Test Input No
