NOS MINEBEA / NMB LOAD CELL Type C2D1-100K-S01 - 100kg 220lb capacity

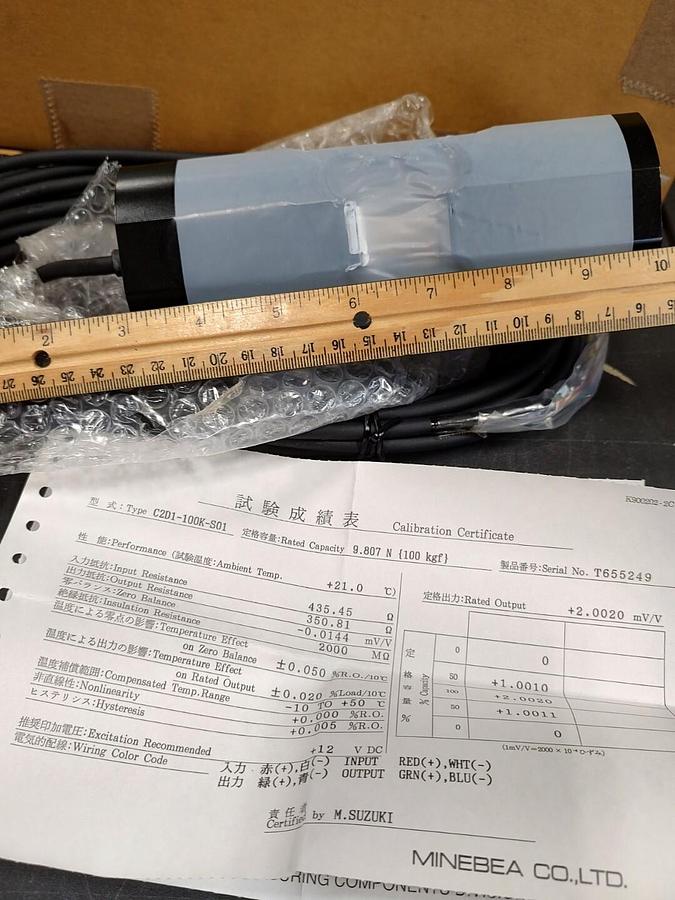

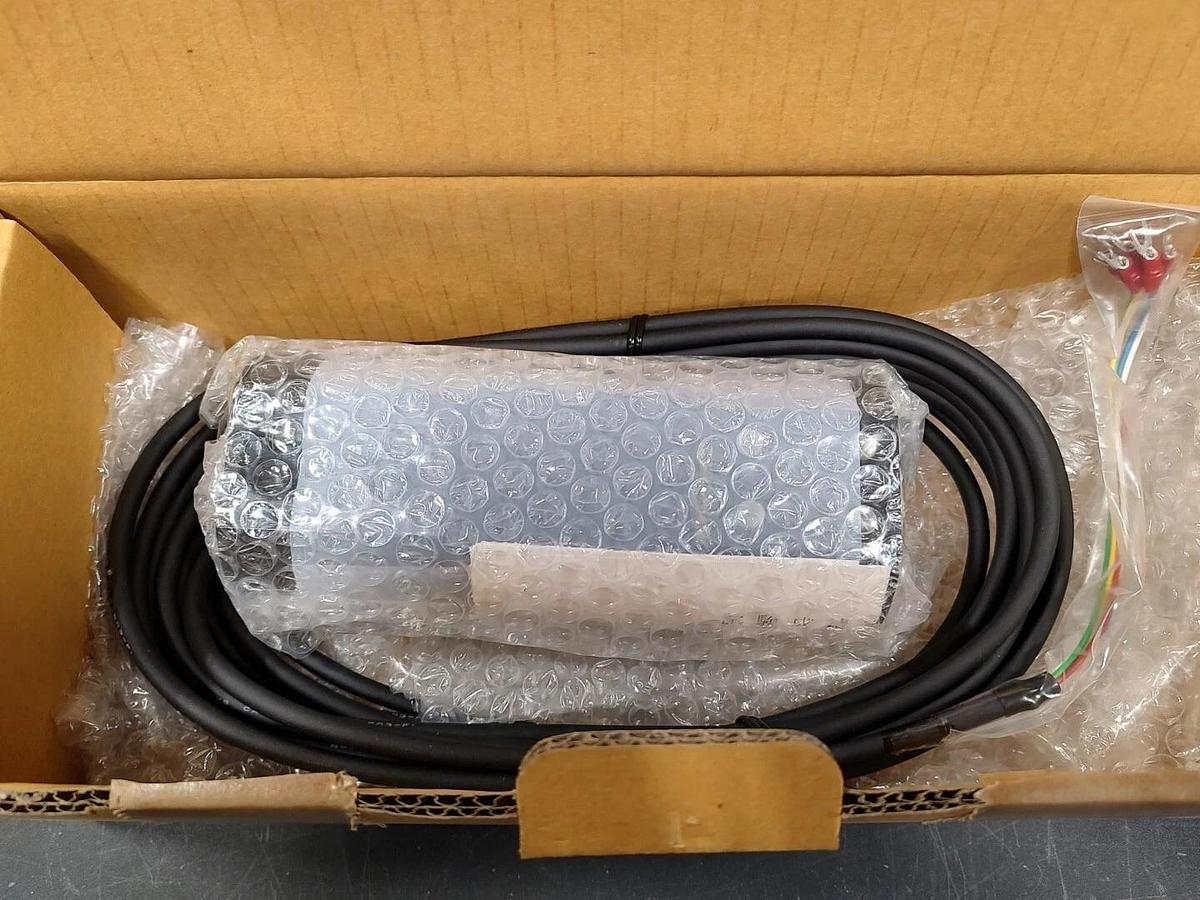

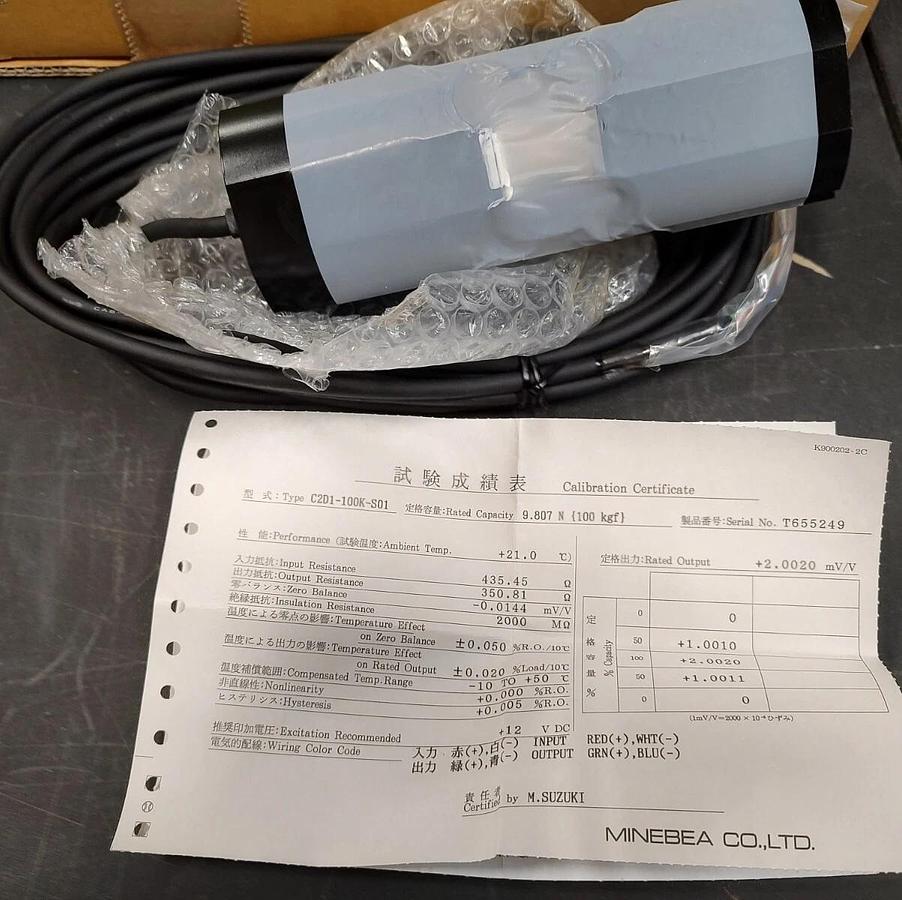

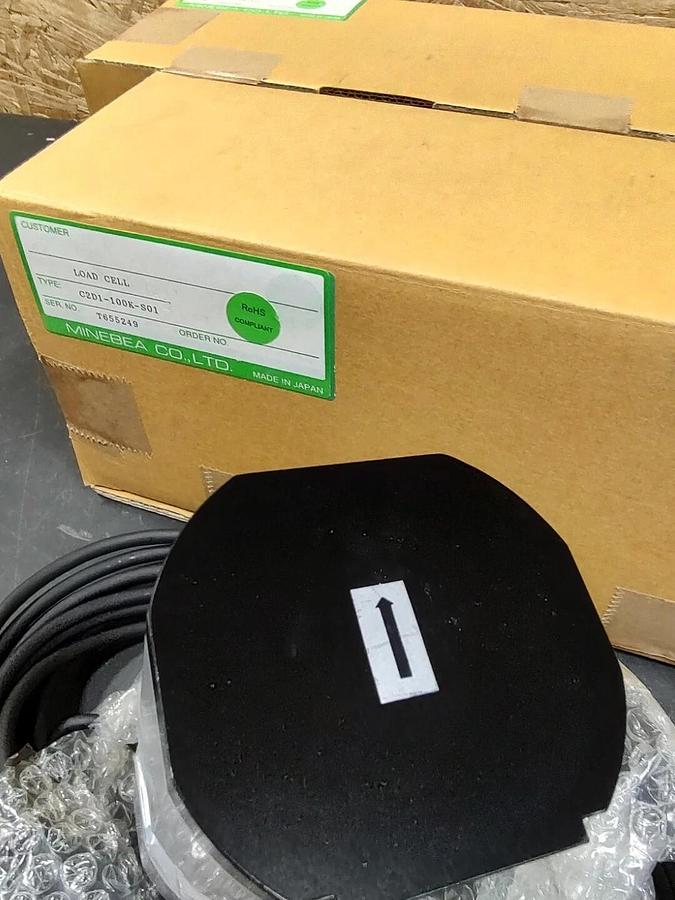

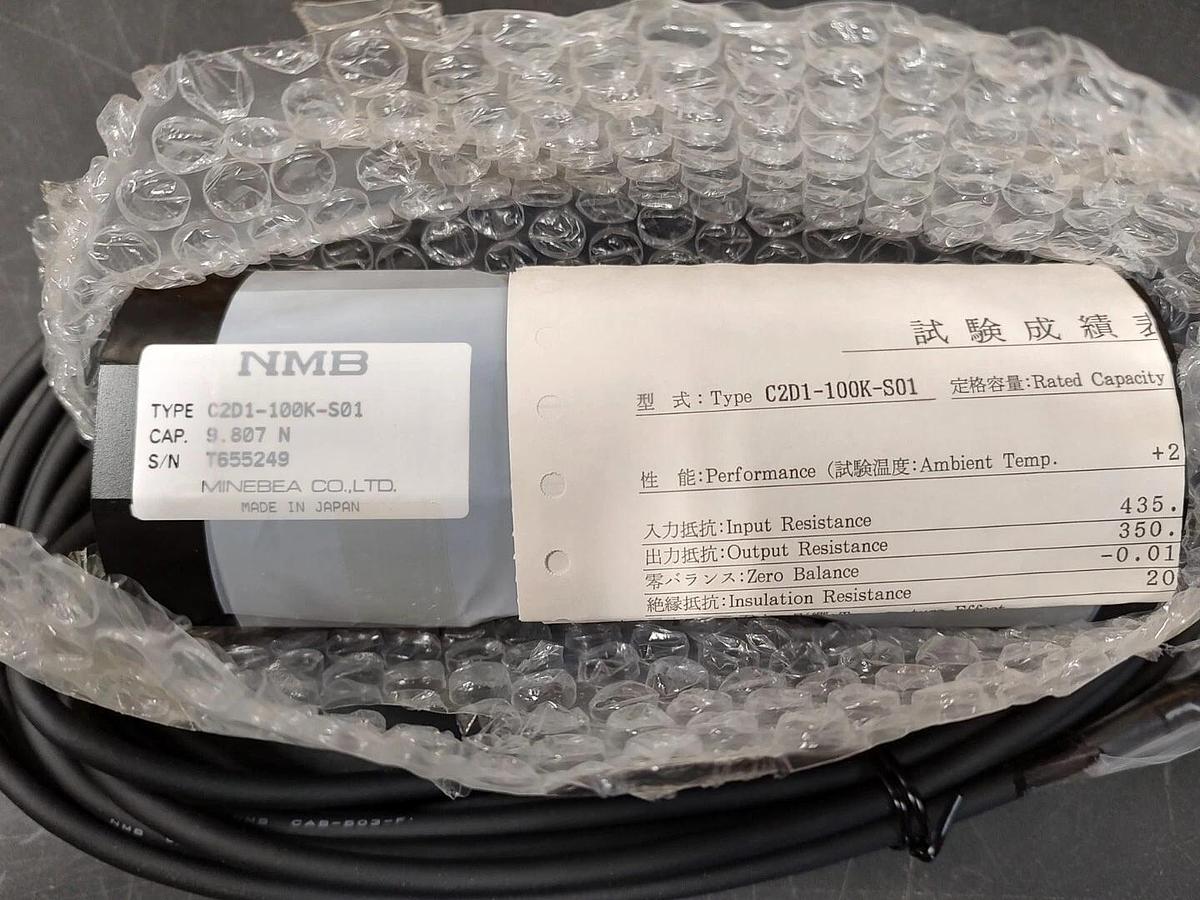

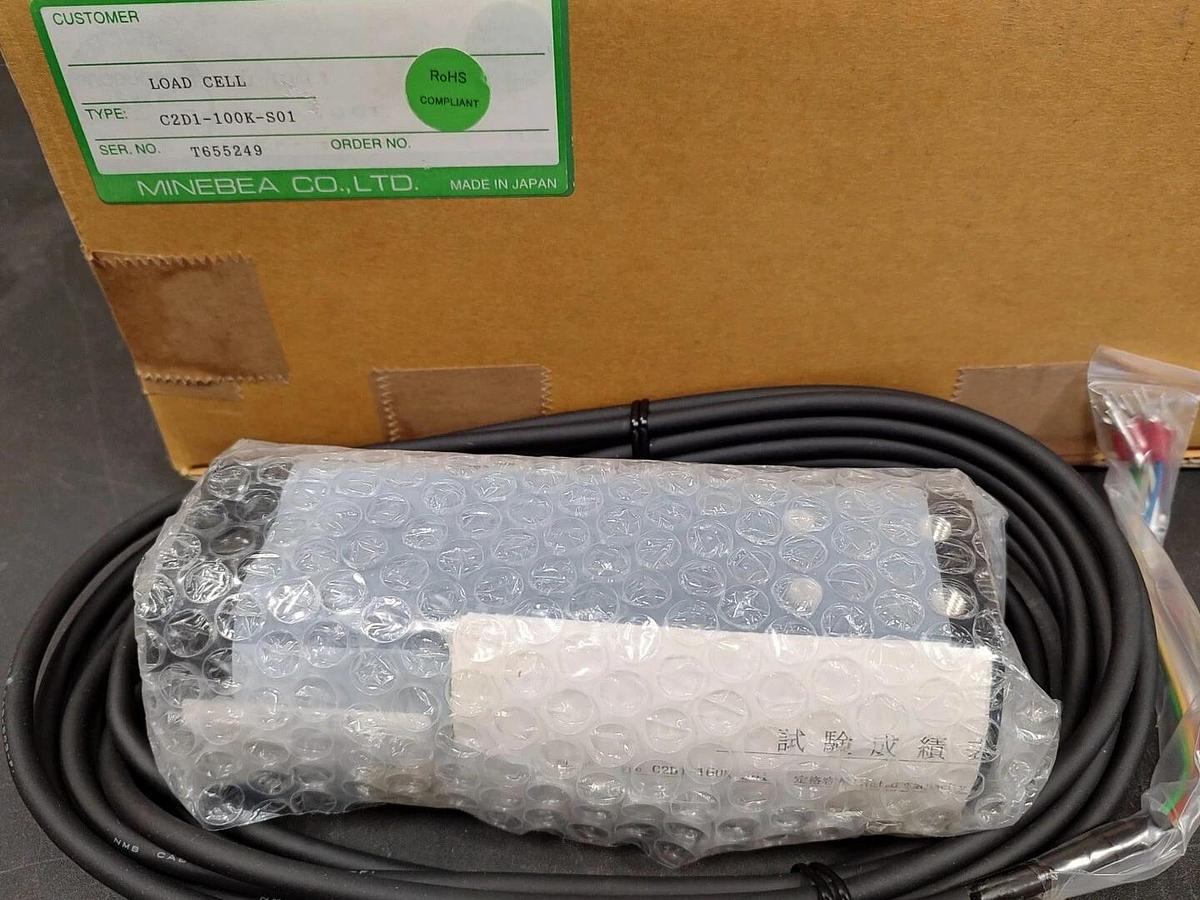

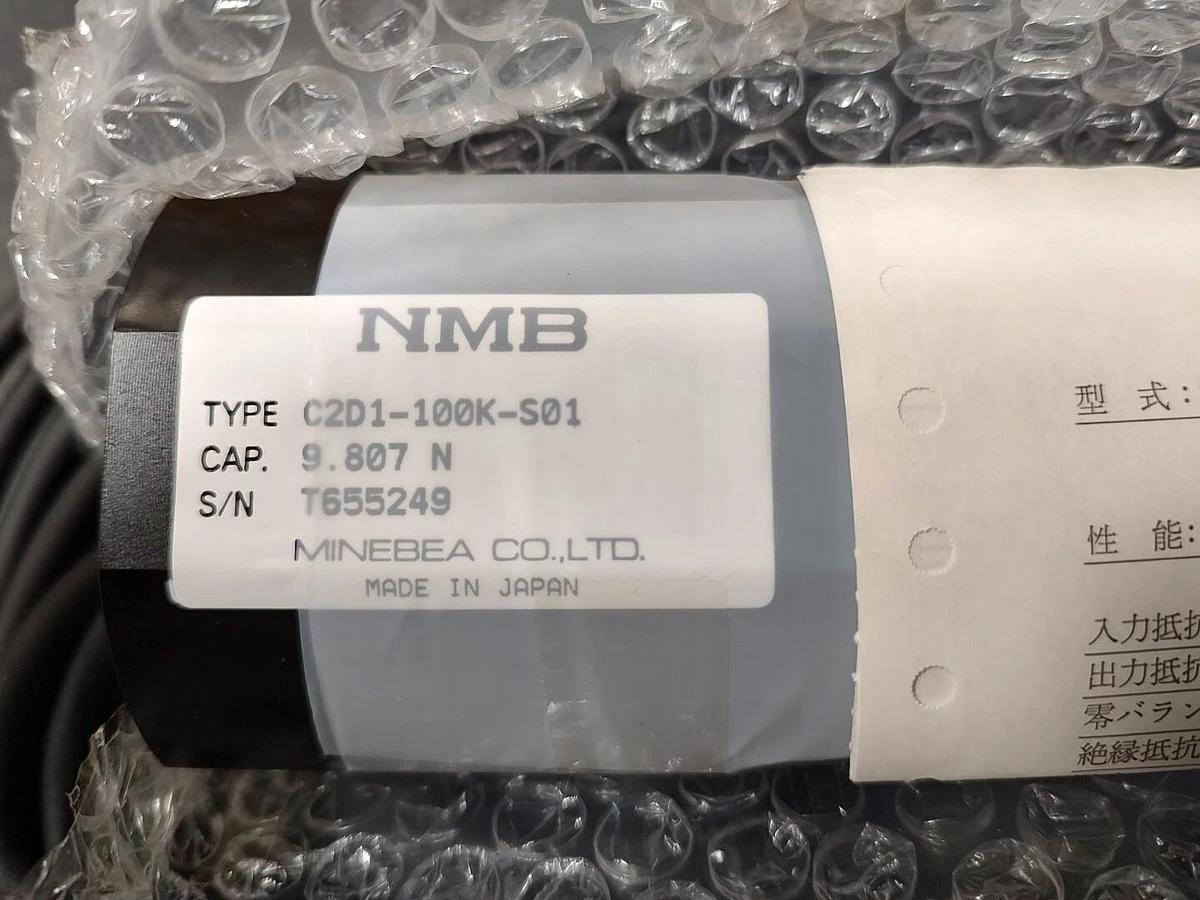

NOS MINEBEA / NMB  LOAD CELL Type C2D1-100K-S01 - 100kg 220lb capacity. Please see the pictures for details and condition! Free economy shipping included! Thank you! Rated capacity Minimum detected scale (Vmin) Natural frequency Rated displacement Weight (Approx.) C2D1-100K 100 kg 10 g 450 Hz 0.13 mm 1.9 kg Specifications OIML accuracy class C4 Maximum scale interval 4,000 Rated capacity 100 kg ~ 800 kg Minimum detected scale (Vmin) 10 g ~ 80 g Safe overload 150% R.C. Ultimate overload 200% R.C. Rated output 2 mV/V(ï¼0.004, -0)mV/V Non-linearity 0.018% R.O. Hysteresis 0.018% R.O. Repeatability 0.010% R.O. Creep 0.012% R.O./30 min Creep recovery 0.012% R.O./30 min Excitation, recommended 12 V or less Excitation, maximum 16 V Zero balance ±0.1 mV/V Input resistance 380 Ω ~ 460 Ω Output resistance 347 Ω ~ 353 Ω Insulation resistance 2,000 MΩ or more (DC50 V) (between bridge and main body) Temp. range, compensated -10â ~ 40â Temp. range, safe -20â ~ 70â Temp. effect on zero 0.014% R.O./10â Temp. effect on output 0.010% LOAD/10â Cable Ï6.3, 4-cores shielded 6 m cable directly attached, Y-crimp type terminal lugs are attached at cable end. Class of protection IP65 or equivalent Material of element Alluminium alloy Durability 1,000,000 times with rated load applied. Effect of eccentric load ï½¥ The size of loading plate : 450 mm x 650 mm at maximum. ï½¥ The center of loading plate and also the center of load cell should be the same position. ï½¥ Error is within 0.02 %R.O. applied with 1/2 of rated capacity at the position of 200 mm of eccentricity.
