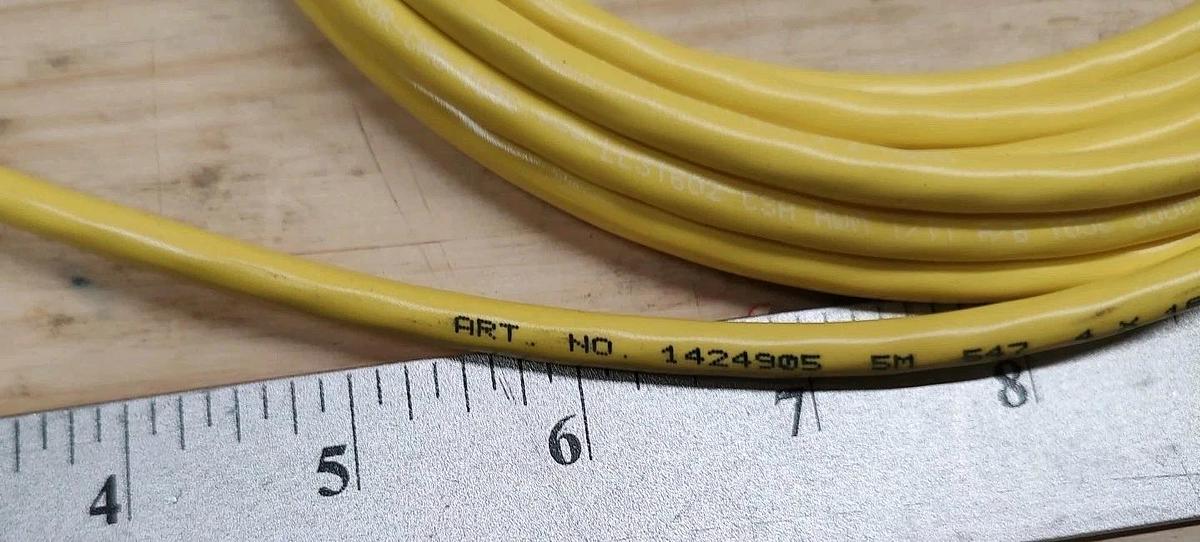

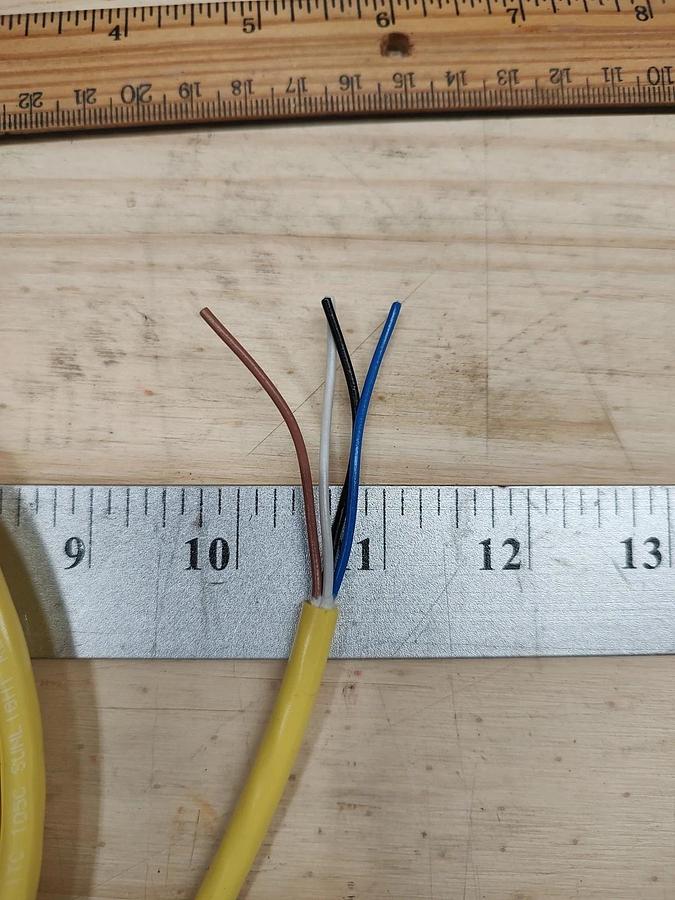

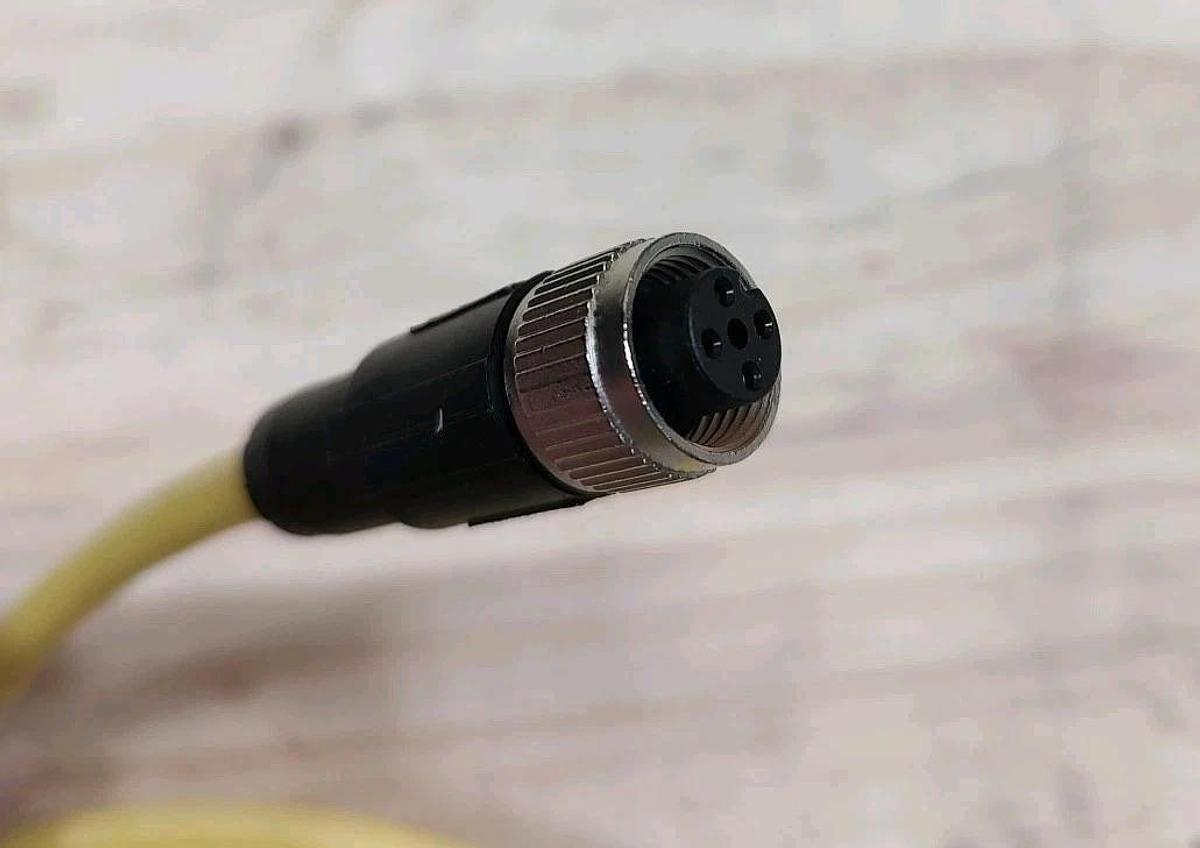

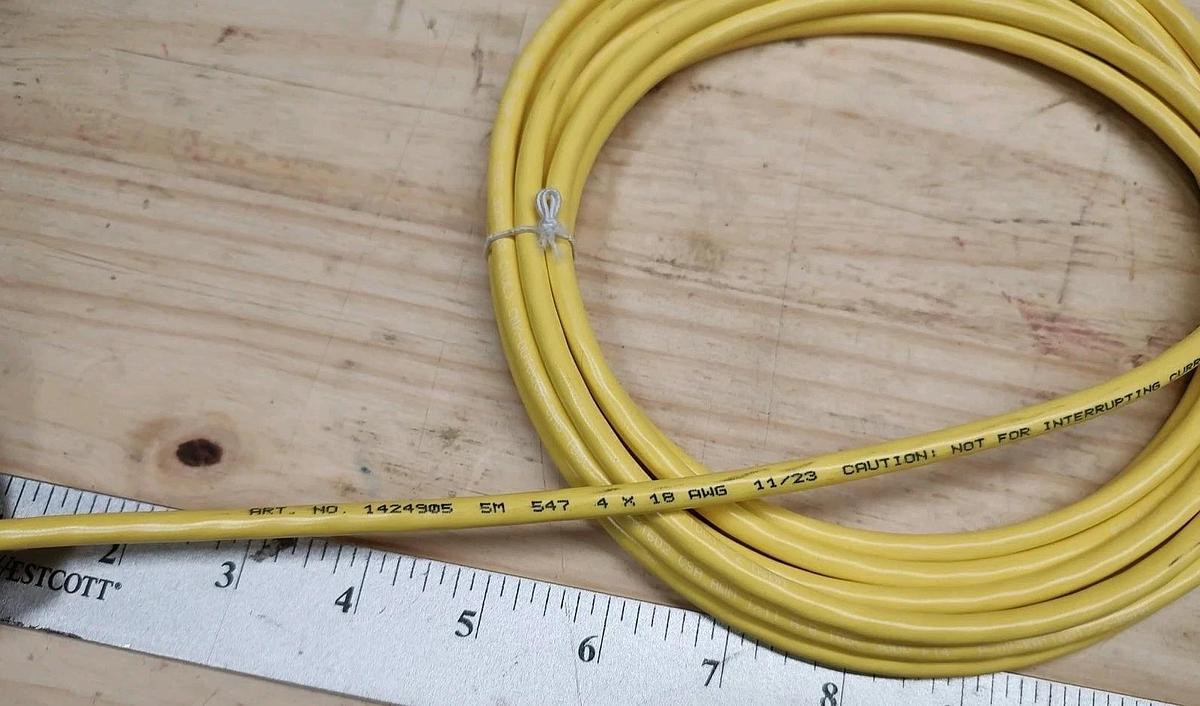

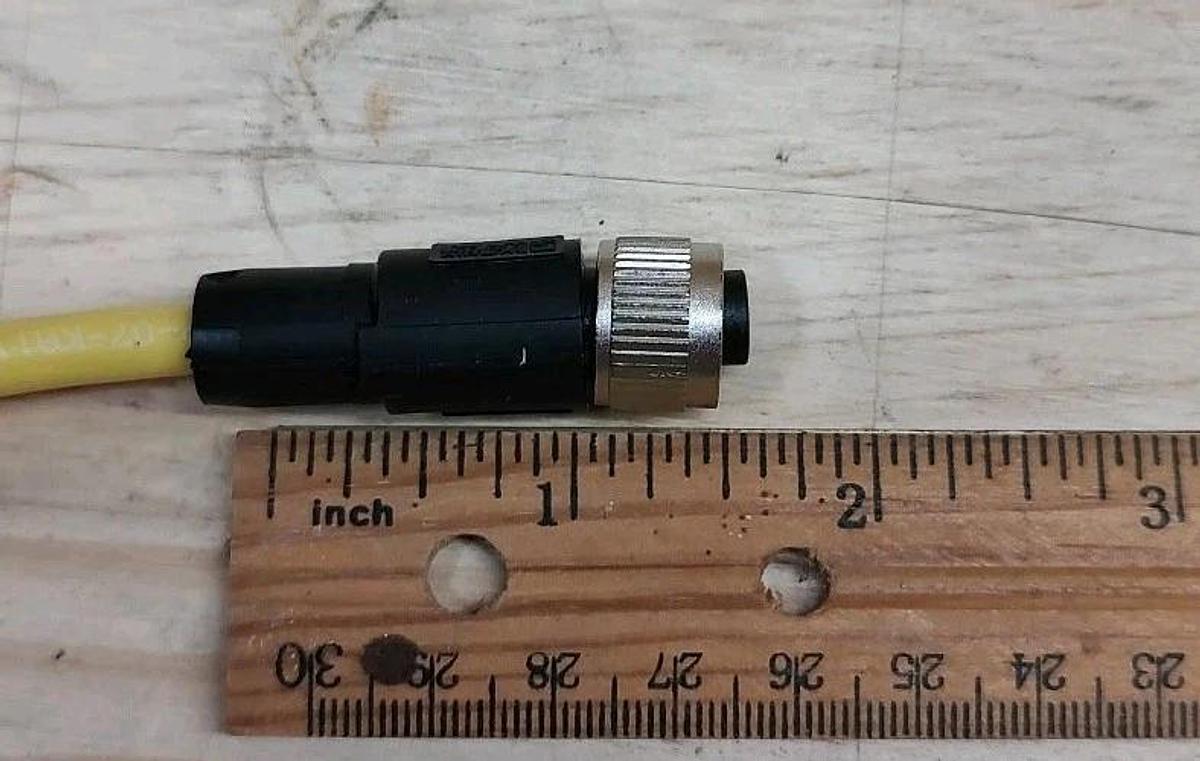

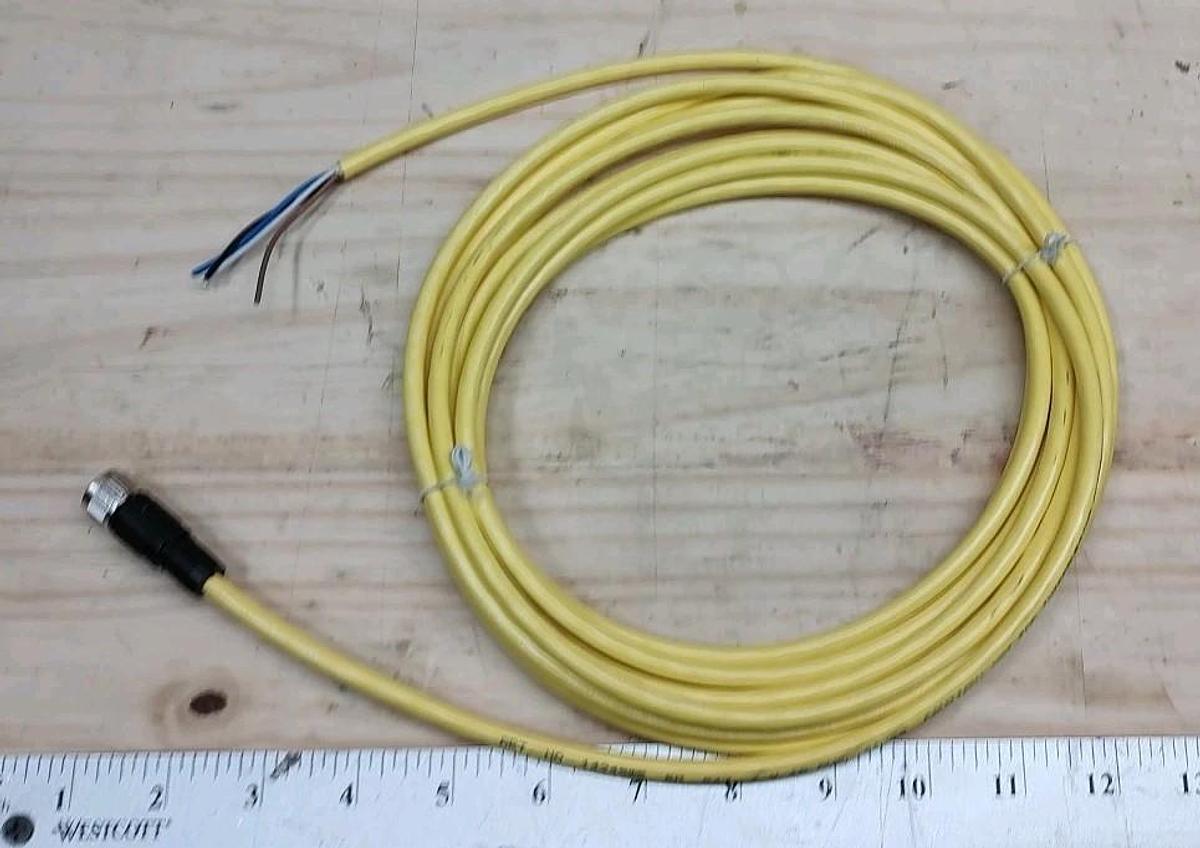

NEW Phoenix Contact 1424905 Sensor/actuator cable 4C-18AWG PVC yellow 5 meters

NEW Phoenix Contact 1424905 Sensor/actuator cable - 4-position - PVC - yellow 5 meters long SAC-4P- 5,0-547/M12FS BK - Sensor/actuator cable Please see the picturesfor details and condition. · If you need helpdetermining if this is the right part for your application, please ask! · Free economy shipping! · Thank you! Technical data Product properties Product type Sensor/actuator cable Application Standard, U.S. cables Number of positions 4 No. of cable outlets 1 Shielded no Coding A Insulation characteristics Overvoltage category II Degree of pollution 3 Material specifications Flammability rating according to UL 94 HB Seal material NBR Material of grip body TPU, hardly inflammable, self-extinguishing Contact material CuSn Contact surface material Ni/Au Contact carrier material TPU GF Material for screw connection Zinc die-cast, nickel-plated Outer sheath, material PVC Electrical properties Insulation resistance ⥠10 MΩ Nominal voltage UN 250 V AC 250 V DC Nominal current IN 4 A Signaling Status display no Status display present No Connection data Conductor connection Tightening torque 0.4 Nm (M12 connector) Connector Connection 1 Type free cable end Connection 2 Type Socket straight M12 Cable/line Cable length 5 m PVC AWG 18 yellow 105°C [547] Dimensional drawing UL AWM Style 2517 (105 °C / 300 V) Number of positions 4 Shielded no Cable type PVC AWG 18 yellow 105°C [547] Conductor structure signal line 41x 0.16 mm AWG signal line 18 Wire diameter incl. insulation 1.7 mm ±0.03 mm External cable diameter 6.00 mm ±0.2 mm Outer sheath, material PVC External sheath, color yellow Conductor material Tin-plated Cu litz wires Material wire insulation PVC Single wire, color brown, white, blue, black Overall twist 4 wires, twisted Nominal voltage, cable 300 V Minimum bending radius, fixed installation 8 x D Smallest bending radius, fixed installation 48 mm Flame resistance FT4 C(UL) CMX OUTDOOR-CMG 105 °C UL ITC/PLTC 105 °C Special properties CSA AWM I/II A/B FT4 105 °C / 300 V Ambient temperature (operation) -30 °C ... 105 °C (cable, fixed installation) Environmental and real-life conditions Ambient conditions IP65 IP67 Degree of protection IP68 Ambient temperature (operation) -25 °C ... 90 °C (Plug / socket)
